2020, 4040, and 8020 aluminum extrusions each provide unique benefits specific to individual structures. Designed from the ground up, the 2020 aluminum extrusion is known for its lightweight and cost-effective nature, ideal for precision-based projects. 435 lanes offer improved stability and load-bearing capabilities in medium-scale drawings. 8020 profiles bestow unrivaled strength and durability for heavy-duty tasks. Selecting the appropriate profile guarantees continuous efficiency in either lightweight frameworks or industrial-strength constructions. With an expertise in aluminum extrusion, EPRO-RAPID enables the industries to maintain precision and reliability on each of the projects.

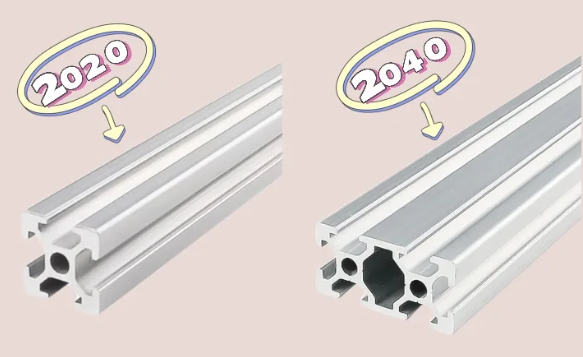

2020 Aluminum Extrusion
Dimensions and Specifications
The 20MM X 20MM aluminum extrusion is a type of aluminum extrusion with both the width and height of the cross-section are 20MM. This design standardization guarantees compatibility with different fittings for fast and easy assembly. Its stress lightweight structure make is the perfect material for projects with moderate load-bearing capacity requirements. The profile, owing to its small size, provides excellent stiffness, making it a good option for lightweight frames as well as small equipment brackets. Moreover, it offers support for flexible configurations, allowing it to adapt to the requirements of different projects.
Strengths and Limitations
The most impressive feature of the 2020 aluminum extrusion is the weight-versus-strengths tradeoff. It offers a strong and lightweight alternative that is well suited for portable and easy-to-handle applications. This profile has great machinability, enabling accurate customization. Its high strength and hardness, however, may require more wear-resistant tools when machining it. Residual machining stress may be a factor, but this can be prevented or minimized by a proper heat treatment or stress relieving processes. Thus, though it works great in light-duty applications, when it comes to heavyweight functions, this does not stand against the profiles like 4040 aluminum extrusion.
Common Applications
Due to its versatility and affordability, the 2020 aluminum extrusion serves a multitude of projects. It also finds application in fabricating light-weight structural frameworks, small equipment jigs, and automation equipment. Its small form factor and modular setup has led to its popularity with DIY projects, prototyping, and small to mid-scale industry setups. This type is also used by sectors, like aerospace and automotive, for parts that need concentration and moderate strength. This lightweight structural system is easy to assemble and flexible in application.
EPRO-RAPID provides quality driven 2020 aluminum extrusion manufactured for your projects. EPRO-RAPID makes sure that industries always have durable and efficient aluminum profiles at their disposal with a combination of precision manufacturing and high-speed turnaround time.
4040 Aluminum Extrusion
Dimensions and Specifications
4040 Aluminum Extrusion The Circle: A Circumferential Section of 40mm. Compared to smaller profiles such as the 2020 aluminum extrusion, this larger profile offers enhanced structural stability and higher load-bearing capacity. And it has an 8mm slot to make everything assembly easier by accepting standard bolts and nuts. It has strength and is also easy to customize, making it a versatile option for projects that require both. Since the profile can also be used as a modular structure, it is integrated into many frameworks without any problems and can also be adapted to a variety of fittings and accessories.
About EPRO-RAPID specializes delivering standard 4040 aluminum extrusions with high quality standards. Their construction provides consistent dimensions and reliable properties, making them fit for medium-load applications. Regardless if you need it for industrial automation or laboratory builds, the 4040 profile makes the assembly strong, yet flexible.
Strengths and Limitations
4040 ALUMINUM EXTRUSION Ideally Suited for Strength & Versatility in Applications Its capacity to bear stronger loads makes it ideal for heavy-duty applications, such as for overhead accessories or the frame of an industrial production line. Due to the strength of the profile, it retains its structural integrity while being machined, even if some moderate customization is performed. Its power-to-weight ratio provides excellent performance without excess weight.
As a result, although the 4040 profile is efficient in mid-level services, it will struggle compared to a heavier duty profile such as 8020. If you’re working on a build requiring max strength or heavy duty use, then you may be better off going with a larger extrusion. That said, most medium-scale applications will find the 4040 to be a great and versatile choice.
Common Applications
Thanks to their flexibility and dependability, the 4040 aluminum extrusions have become a popular option in numerous industries. They are widely used in:
· Industrial automation: Machine frames, conveyor systems, and robotic arms.
·Heavy machinery: Parts that need moderate to high load-bearing.
·Aerospace and aviation: Developing strong but lightweight structures to test and prototype.
·Green energy solutions: Solar panel mounts renewable energy collecting and wind turbine gear.
·Medical machines: Build modular frames for diagnostic devices and laboratory setups.
·Retail fixtures: Designing sturdy racks and display stands.
EPRO-RAPID focuses providing aluminum extrusions in 4040 aluminum extrusion to suit the specific needs of these industries. EPRO-RAPID products are manufactured under ISO 9001 certified processes with largely rapid turnarounds. Available in both custom projects and standard app types, the 4040 profile provides the strength and versatility required to make concepts reality.
8020 Aluminum Extrusion
Dimensions and Specifications
The 8020 aluminum extrusion stands out with its larger cross-section, and the structural completation. Its stable design can afford heavy-application, that’s the first choice for the industries which have strength and reliable requirement.
EPRO-RAPID also delivers precision-engineered 8020 aluminum extrusions that meet stringent quality standards. Whether for industrial machinery or custom frame, the 8020 ensures durability and adaptability.
Strengths and Limitations
The 8020 aluminum extrusion plays an important role in balancing strength, corrosion resistance, and machinability. The 8020 aluminum extrusion’s corrosion-resistant properties ensure the tool life longevity, even in challenging environments. Additionally, its excellent machinability allows for precise customization, enabling industries to custom the extrusion as per their specific needs.
One of the main advantages of the 8020 is multifunction. It supports creative and complex designs, offering industries the freedom to innovate. However, its larger size and higher load capacity may not be necessary for lightweight or small-scale projects. For such applications, 2020 or 4040 might be more cost-effective. Anyway, the 8020 is still indispensable option for projects which require maximum strength and customization.
Common Applications
The 8020 aluminum extrusions have become the first choice in industries that demand stable and adaptable solutions. It’s able to handle heavy loads and support complex designs makes them a go-to choice for various applications, including:
- Industrial automation lines: Building durable machine frames and conveyor systems.
- Automotive component: Build structural parts that require high strength and precision.
- Aerospace engineering: Supporting large prototypes and testing equipment.
- Renewable energy: Build the frame support for the wind turbine and solar panel.
- Mechanical parts: Designing housings and enclosures for different machine.
- Custom frameworks: Creating structures for exhibitions, labs, or research setups.
EPRO-RAPID specializes in delivering high-quality 8020 aluminum extrusions to meet your specification needs. With advanced manufacturing technologies and ISO 9001-certified processes, EPRO-RAPID ensures that every extrusion meets the highest standards of precision and reliability.
Comparative Analysis of Aluminum Extrusion Profiles
Strength and Load-Bearing Capacity
Regarding the strength and loading bearing capacity, the differences between 2020, 4040 and 8020 are obvious.
2020 aluminum extrusion is suitable for lightweight projects.
4040 is suitable for medium-scale projects.
8020 is suitable for heavy duty applications.
By understanding the load requirements of the project, the industry can choose the appropriate aluminum profile to ensure the integrity and performance of the structure.
Cost and Budget Considerations
Cost and budget are key factors when choosing the right aluminum extrusion profile.
2020 aluminum extrusion are cost-effective and suitable for lightweight and budget sensitive projects.
4040 finds a balance between cost and performance. making it ideal for mid-sized projects that require higher load capacity but have limited budgets.
8020 is relatively expensive, but it also offers unmatched durability and strength.
Businesses need to make trade-offs between budget and project needs to find the most economical and effective option. EPRO-RAPID’s aluminum extrusion services offer competitive pricing, ensuring that industries achieve high quality without deviating from their financial goals.
Adaptability and Customization
As customization dominates modern manufacturing trends, aluminum profiles—particularly the 2020 extrusion—excel in adaptability, thanks to their modular design. Engineers leverage this profile’s lightweight structure to enable rapid adjustments, making it ideal for prototypes or systems requiring frequent reconfiguration.
However, while the 4040 profile (an upgraded iteration of the 2020) offers stronger compatibility and load capacity, its premium cost often sidelines it in budget-constrained projects. Instead, teams prioritize cost-effective alternatives that balance performance and affordability, unless high durability or scalability becomes non-negotiable.
The 8020 can be said to be taken to a new level and is ideal for large automation and heavy machinery.
EPRO-RAPID specializes in customized aluminum extrusion according to unique project needs. With advanced manufacturing technology, EPRO-RAPID ensures that each profile meets precise specifications, enabling the industry to innovate with confidence.
By comparing these profiles, industries can determine the solution that best suits their needs. Whether load-bearing capacity is a priority or budget, aluminum extruded profiles offer solutions for a wide range of applications. EPRO-RAPID’s expertise ensures that the industry receives high-quality profiles designed to improve efficiency and reliability.
How to Choose the Right Aluminum Extrusion for Your Project
Choosing the right aluminum extrude for your project requires careful consideration of several factors: strength, cost, adaptability, affordable.
Evaluate Your Project Requirements
The first thing for every single project is to establish our needs. During the design phase, teams prioritize application-specific needs—such as rigidity and load capacity—before selecting materials. As a result, the 2020 aluminum extrusion, with its unmatched strength-to-weight ratio, becomes the go-to choice for weight-sensitive projects, including modular robotics or portable sensor mounts. The 4040 profile is well suited to small applications where extra stability/strength is desired. For commercial or industrial applications, the 8020 profile offers unparalleled strength and versatility.
Consider the environment where the frames will be used. Will they face harsh conditions or require corrosion resistance? Aluminum extrusions, known for their durability, perform well in challenging environments. However, selecting the right profile ensures the structure meets both current and future demands. EPRO-RAPID’s expertise in aluminum extrusion helps industries assess their project needs and choose profiles that align with their goals.
Budget and Cost Constraints
The decision largely depends on budget. The 2020 aluminum extrude is well in demand for projects with restricted budgets, and with a more 9501 aluminum extrude, the cost of the project for the 2020 aluminum extrude is at a minimum. It is an affordable solution. The 4040 profile offers a good compromise between cost and performance for mid- to large-scale projects, providing a higher strength-to-weight ratio for a fairly low price.
Although more expensive, the 8020 heavy-duty applications justify the price. In addition, its higher rigidity and load-bearing capacity guarantees long-term stability, which is an asset for industry applications with demanding requirements. With competitive price points and quick turnaround time, EPRO-RAPID ensures that businesses can achieve high-quality work within their budget.
Customization and Assembly Needs
First, profile selection is tailored to align with your project’s requirements. Consequently, engineers develop unique designs for each application. Aluminum extrusions stand out because they allow designers to modify dimensions and features effortlessly, ensuring precise alignment with technical specifications. Modularity is a strong point in the 2020 profile, enabling easy and fast alterations and expansions. The small footprint makes it highly modular and configurable during assembly, as is the case with lighter frames.
Options such as the 4040 profile allow for much more design freedom, thus allowing the addition of more fittings, and accessories. It well-suits projects in medium scale that demands strength and customization. 8020 is beneficial in the industries that need complex designs or systems. While its larger dimensions supports the needed creative freedom for industries that can find new ways and work without limit.
EPRO-RAPID specializes in providing customized aluminum extrusions. EPRO-RAPID guarantees that all extrusions meet exact specifications, from standard profiles to custom designs. Supported by advanced manufacturing technologies and ISO 9001-certified processes, EPRO-RAPID enables industries to dream big and manufacturing their innovations with confidence!
Industries understand this and make decisions based on evaluating project needs, budget limitations, and customization requirements. Need solutions for different types of applications, like aluminum extrusions 2020, 4040, or 8020? From precision design to reliable delivery, EPRO-RAPID is dedicated to ensuring all projects are optimal in performance and efficiency.
FAQ
What are the common types of aluminum extrusion?
Aluminum extrusion comes in several types, each suited for specific applications. The most common methods include:
- Direct extrusion: The most widely used process where aluminum is pushed through a die to create the desired shape.
- Indirect extrusion: In this method, the die moves toward the aluminum billet, reducing friction and improving efficiency.
- Hot extrusion: This process involves heating aluminum to make it more malleable, ideal for creating complex profiles.
- Warm extrusion: A middle ground between hot and cold extrusion, offering better precision while maintaining some flexibility.
- Cold extrusion: Performed at room temperature, this method produces high-strength aluminum profiles with excellent surface finishes.
